XNF-8010RVM 6M H.265 NW Fisheye Camera

AIC Trading > PRODUCT > Surveillance Camera System

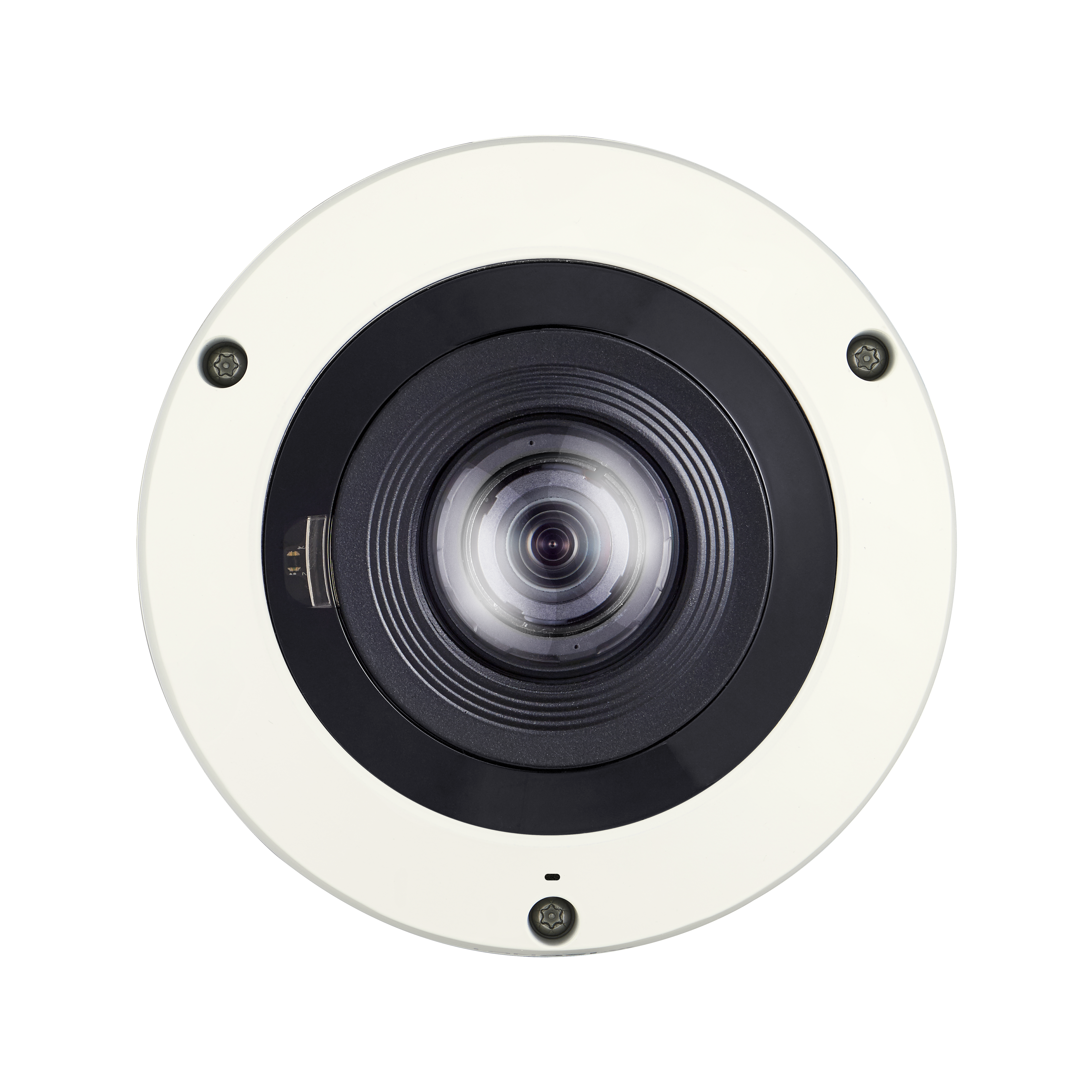

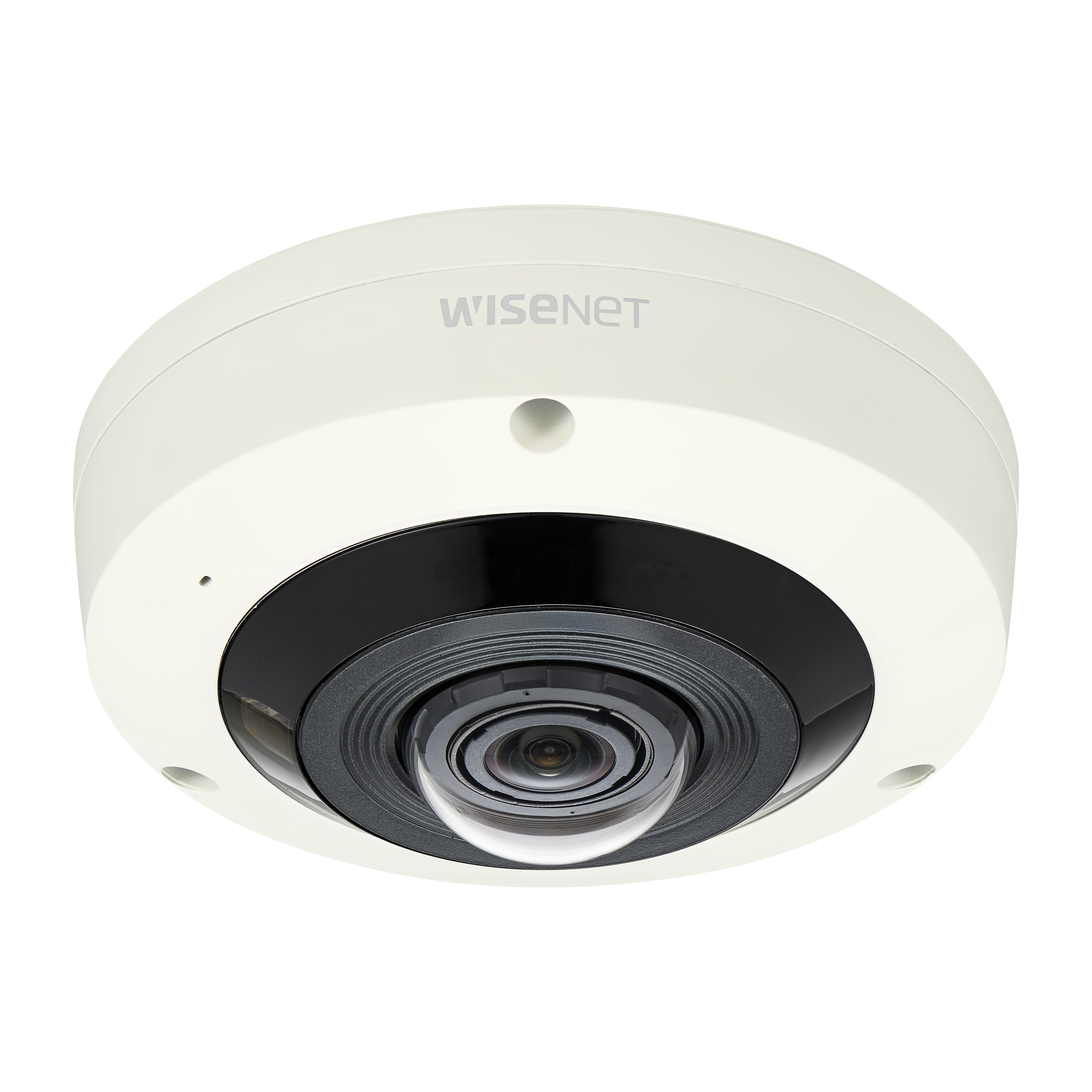

6M H.265 NW Fisheye Camera

XNF-8010RVM

? Max. 2048 x 2048 resolution
? H.265, H.264, MJPEG codec supported
? Fisheye, Single panorama, Double panorama, Quad view
? On board dewarping, Digital PTZ (8x), Bi-directional audio
? True WDR (120dB), WiseStream? support
? Video Analytics, Heatmap, People counting
? Queue management
? Motion deteciton, Handover, M12 (8010RVM), IP66/IK10
? Memory slot(Max. 512GB), IR viewable length 15m(49.21ft)

?? phân gi?i cao
Cung c?p m?t h? th?ng giám sát nâng cao b?ng cách t?o ra ch?t l??ng hình ?nh v??t tr?i
Theo dõi t? ??ng k? thu?t s?

Theo dõi t? ??ng k? thu?t s? có th? ???c s? d?ng ?? phát hi?n các ??i t??ng chuy?n ??ng, bao g?m c? con ng??i

C?i thi?n b?ng thông v?i công ngh? WiseStream m?i

WiseStream có th? gi?m 50% b?ng thông b?ng cách s? d?ng công ngh? ??ng và khi k?t h?p v?i mã hóa video hi?u qu? cao

True WDR (120dB)
Ch?c n?ng WDR cung c?p ch?t l??ng hình ?nh nâng cao, b?ng cách gi?m nhòe chuy?n ??ng và x? lý hình ?nh rõ nét h?n.

Thông s? k? thu?t

Video
Imaging Device 1/1.8″ 6M CMOS
Resolution Original view: 2048×2048, 1280×1280, 1080×1080, 960×960, 768×768, 720×720, 640×640, 480×480
Single panorama: 2048×512, 1920×480, 1280×320, 640×160, 704×176
Double panorama: 2048×1024, 1920×960, 1280×640, 640×320, 704×352
Quad view: 2048×1536, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 704×576
Q1/2/3/4: 1024×768, 800×600, 640×480
Max. Framerate H.264/H.265 : 30fps/25fps@2048×2048(60Hz/50Hz)
MJPEG : Max 15fps
Min. Illumination Color: 0.1 Lux (F1.6, 1/30sec), BW: 0 Lux (IR LED On)
Lens
Focal Length (Zoom Ratio) 1.6mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 192? / V: 192? / D: 192?
Operational
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR?
Defog Support
Video Rotation Flip, Mirror
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Alarm I/O Input 1ea / Output 1ea
Audio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet M12
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W
12VDC: Max 12W
