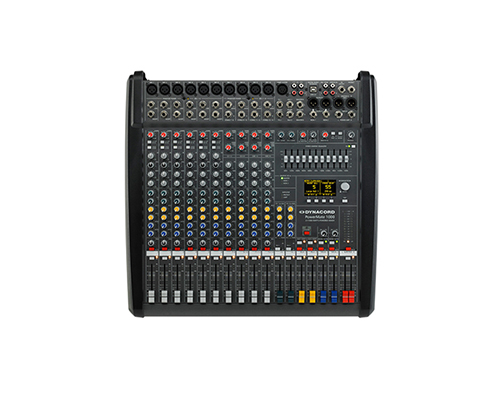

Bàn tr?n li?n công su?t 6 Mic/Line PowerMate 1000-3

Bàn tr?n li?n công su?t 6 Mic/Line và 4 Mic/Stereo Line Channels PowerMate 1000-3

Bàn tr?n li?n công su?t 6 Mic/Line và 4 Mic/Stereo Line Channels PowerMate 1000-3

DC-PM1000-3-UNIV

  • S? l??ng ???ng vào: 6 ???ng vào mono, 4 ???ng vào stereo
  • S? ???ng ra ph? (MON, FX, AUX): 2 Pre, 2 Post, 2 Pre/Post switchable
  • Công su?t ra (1kHz, THD=1%): 2 x 1000W/ 4 Ohms
  • Công su?t ra trung bình: 2 x 900W/ 4 Ohms (20Hz ? 20kHz, THD < 0,5%)

Thông s? k? thu?t

Thông s? k? thu?t

  • Channels (Mono + Stereo) 6 + 4
    Auxiliarys (MON, FX, AUX) 2 Pre, 2 Post, 2 Pre/Post switchable
    Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
    into 2.66 ? 2 x 1600 W
    into 4 ? 2 x 1250 W
    into 8 ? 2 x 675 W
  • Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
    into 2.66 ? 2 x 1350 W
    into 4 ? 2 x 1150 W
    into 8 ? 2 x 650 W
    Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
    into 2.66 ? 2 x 1350 W
    into 4 ? 2 x 1000 W
    into 8 ? 2 x 600 W
    Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
    into 4 ? 2 x 900 W
    into 8 ? 2 x 450 W
    Maximum Output Voltage, of power amplifier, 1 kHz, no load 74 Vrms
    THD, at 1 kHz, MBW = 80 kHz
    MIC input to Master A L/R outputs, +16 dBu, typical < 0.005%
    POWER AMP INPUTS to Speaker L/R outputs < 0.075%
    DIM 30, power amplifier, 3.15 kHz, 15 kHz < 0.05%
    IMD-SMPTE, power amplifier, 60 Hz, 7 kHz < 0.15%
    Frequency Response, -3 dB, ref. 1 kHz
    Any input to any Mixer output 15 Hz to 70 kHz
    Any input to Speaker L/R output 20 Hz to 30 kHz
    Crosstalk, 1 kHz
    Amplifier L/R < -85 dB
    Channel to Channel < -80 dB
    Mute- & Standby-Switch attenuation > 100 dB
    Fader & FX/AUX/MON-Send attenuation > 85 dB
    CMRR, MIC input, 1 kHz > 80 dB
    Input Sensitivity, all level controls in max. position
    MIC -74 dBu (155 ?V)
    LINE (Mono) -54 dBu (1.55 mV)
    LINE (Stereo) -34 dBu (15.5 mV)
    CD (Stereo) -34 dBu (15.5 mV)
    POWER AMP INPUTS +8 dBu (1.95 V)
    Maximum Level, mixing desk
    MIC inputs +21 dBu
    Mono Line inputs +41 dBu
    Stereo Line inputs +30 dBu
    All other inputs +22 dBu
    All other outputs +22 dBu
    Input Impedances
    MIC 2 ?
    Insert Return 3.3 ?
    2Track Return & CD In 10 ?
    All other inputs > 15 ?
    Output Impedances
    Phones 47 ?
    All other outputs 75 ?
    Equivalent Input Noise, MIC input, A-weighted, 150 ohms -130 dBu
    Noise, Channel inputs to Master A L/R outputs, A-weighted
    Master fader down -97 dBu
    Master fader 0 dB, Channel fader down -91 dBu
    Master fader 0 dB, Channel fader 0 dB, Channel gain unity -83 dBu
    Signal/Noise-Ratio, power amplifier, A-weighted, 4 ? 105 dB
    Output Stage Topology, amplifier Class D
    Equalization
    LO Shelving ±15 dB / 60 Hz
    MID Peaking, mono inputs ±15 dB / 100 Hz to 8 kHz
    MID Peaking, stereo inputs ±12 dB / 2.4 kHz
    HI Shelving ±15 dB / 12 kHz
    Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz) ±10 dB / Q = 1.5 to 2.5
    Filter
    LO-CUT, mono inputs f = 80 Hz, 18 dB/oct.
    VOICE FILTER, mono inputs switchable
    FEEDBACK FILTER, MON 1/2 70 Hz to 7 kHz, Notch, -9 dB
    Speaker Processing LPN, switchable
    Effects
    Type Dual stereo 24/48-bit multi effects processors
    Effects presets 100 Factory + 20 User, Tap-Delay
    Remote control Footswitch, MIDI
    Display 128 x 64 pixels, OLED
    Digital Audio Interface
    Channels 4 In / 4 Out
    AD/DA Conversion 24-bit
    Sampling Rate 44.1 / 48 / 88.2 / 96 kHz
    PC Interface USB2.0, Female Type B
    Peak Display 6 dB before Clip
    MIDI Interface 5-pin DIN connector, In / Out
    Output Power Control (Speaker Protection) Adjustable longterm RMS Limiter
    Protection
    Mixer Outputs (Relay controlled) MON 1, MON 2, MASTER A
    Amplifier Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay,
    Back EMF
    Switching Mode Power Supply (?C controlled) Inrush Current Limiters, Mains Over/Undervoltage, Mains Over Current, High Temperature
    Cooling Continuous speed controlled Fans
    Phantom Power, switchable in groups 48 V DC
    Power Requirements (SMPS with auto range mains input) 100 V to 240 V AC, 50 Hz to 60 Hz
    Power Consumption, at ? maximum output power, 4 ? 450 W
    Safety Class I
    Ambient Temperature Limits +5 °C to +40 °C (40 °F to 105 °F)
    Dimensions (W x H x D), mm With lid:
    510.5 x 164.5 x 571.5
    Rack-mount:
    483.0 x 135.0 x 443.7
    Weight
    Net Weight, without lid 12.5 kg
    Net Weight, with lid 14 kg
    Shipping Weight 17 kg
    Warranty 36 months
    Optional Accessories
    RMK-1000-3 (Rack Mount Kit for PowerMate 1000) F01U161506 (DC-RMK1000-3)
    Gooseneck Lamp, 12V/5W, 12?, XLR 4 pol. F01U118983 (DC-LITLITE-4P)
    FS 11 (Footswitch with LED) F01U100598 (DC-FS11)
