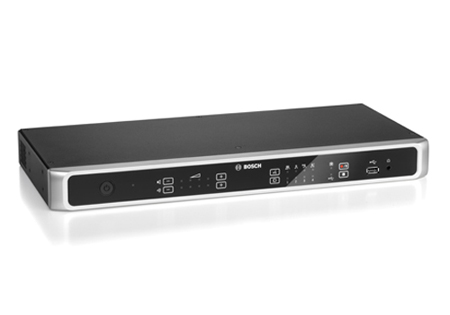

Kh?i ?i?u khi?n trung tâm có tri?t tiêu h?i âm k? thu?t s? CCSD-CURD

Kh?i ?i?u khi?n trung tâm có tri?t tiêu h?i âm k? thu?t s? và ghi âm CCSD-CURD

Kh?i ?i?u khi?n trung tâm có tri?t tiêu h?i âm k? thu?t s? và ghi âm

CCSD-CURD

  • Ch?c n?ng ?Plug & Play? k?t n?i nhanh chóng và d? dàng 80 h?p micro h?i ngh?
  • Kh? n?ng m? r?ng h? th?ng lên t?i 245 h?p micro h?i ngh? (b?ng cách s? d?ng thêm các b? c?p ngu?n m? r?ng
  • ?i?u khi?n và c?u hình thi?t b? qua giao di?n web

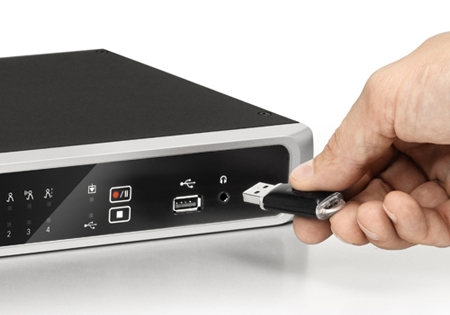

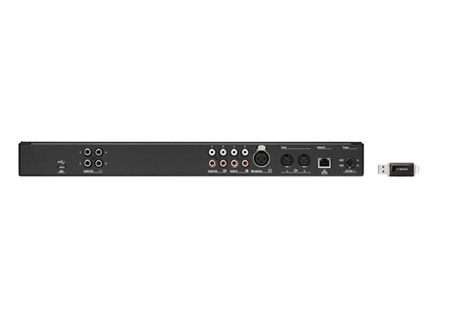

  • Tích h?p ch?c n?ng ghi âm cu?c h?p chu?n MP3 v?i b? nh? trong và ghi qua USB
  • Tích h?p tính n?ng ch?ng ph?n h?i âm DAFS
  • H? tr? ?i?u khi?n camera HD t? ??ng
?i?u khi?n
H? tr? ?i?u khi?n qua giao di?n Web-based. Ng??i dùng có th? ?i?u khi?n h? th?ng t? xa thông qua m?ng Wifi.
V?n hành
?i?u khi?n t?t b?t micro t? xa.
H? tr? k?t n?i
H? tr? k?t n?i v?i nhi?u ch?ng lo?i thi?t b? ngo?i vi: camera Bosch (auto-tracking t? ??ng)/ micro không dây – có dây/ h? th?ng âm thanh b? tr?/ các thi?t b? x? lý âm thanh ngoài/ telephone coupler/ thi?t b? ghi âm ngoài.
Ch? ?? s? d?ng
H? tr? lên t?i 10 micro có th? b?t ??ng th?i v?i 4 ch? ?? h?i th?o: ch? ?? m?/ ch? ?? ghi ?è/ ch? ?? kích ho?t b?ng gi?ng nói/ ch? ?? PTT.

Thông s? k? thu?t

Electrical

  • Supply voltage Adaptor: 100 to 240 VAC, 50/60 Hz
  • Current Consumption voltage Adaptor: 1.9 A (100 VAC) to 1 A 240 (VAC)
  • DC voltage Control Unit: 24 V, 6.0 A
  • Maximum number of Discussion Devices for Control Unit (without Extension Unit): 40 Discussion Devices per trunk; 80 Discussion Device in total; 24 V, Max 5.2 A (short-circuited protected)
  • Discussion Device loudspeakers volume control: 15 steps of 1.5 dB (starting from -10.5 dB)
  • Limit threshold level to unit: 12 dB above nominal level
  • Gain reduction due to number of open microphones (NOM): 1/SQRT (NOM)
  • Sample rate: 44.1 kHz
  • Frequency response: 30 Hz to 20 kHz
  • Ethernet speed: 1 Gb/s

Recorder

  • Recording/ Playback (bit rate): 64, 96, 128, 256 Kbit/sec
  • Recording/ Playback (sample frequency): 44.1 kHz

Mechanical

  • Dimensions including feet (H x W x D): 45 x 440 x 200 mm (1.8 x 17.3 x 7.9 in) 19? wide, 1 RU high
  • Height of feet: 5.5 mm (0.2 in)
  • Mounting: Tabletop or 19 ? rack
  • Material (top and base): Painted metal
  • Color (top and base): Traffic black (RAL 9017) mattgloss
  • Rim front panel: Pearl light grey (RAL 9022) mattgloss
  • Weight (CCSD?CURD): Approx. 3.4 kg (7.5 lb)

Total Harmonic Distortions (THD)

  • Nominal input (85 dB SPL): < 0.5%
  • Max. input (110 dB SPL): < 0.5%

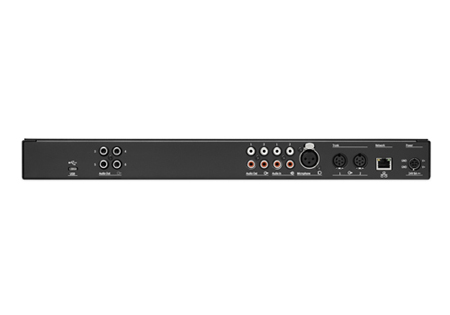

Audio inputs

  • XLR nominal microphone input: -56 dBV
  • XLR maximum microphone input: -26 dBV
  • RCA nominal input: -24 dBV (+/- 6 dB)
  • RCA maximum input: +6 dBV
  • S/N: > 93 dBA
  • Frequency response: 30 Hz to 20 kHz
  • THD: <0.1%

Audio outputs

  • RCA nominal output: -24 dBV (+6/- 24 dB)
  • RCA maximum output: +6 dBV
  • S/N: > 93 dBA
  • Frequency response: 30 Hz to 20 kHz
  • THD: <0.1%

Monitoring loudspeaker

  • Nominal output: 72 dB SPL
  • Frequency response: 200 Hz to 16 kHz (acoustical)
  • Gain range Mute: -10.5 to +12 dB

Environmental

  • Operating temperature: 5 ºC to +45 ºC (+41 ºF to +113 ºF)
  • Storage and transport temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
  • Relative humidity: 5% to 98% non-condensing
