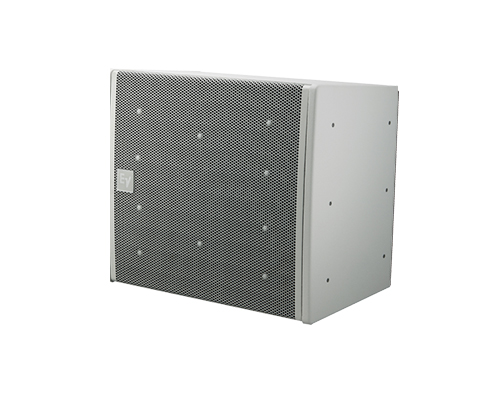

Loa toàn d?i line array 350W/ 16 Ohms, 02 loa LF 8``, 04 loa HF 1,25``, góc m? 90° X 6°, màu tr?ng
EVA2082S906WLB
- ?áp tuy?n t?n s?: 60Hz ??n 19kHz
- M?c thanh áp c?c ??i: 135 dB
- Góc m?: 90 ?? x6 ??
- Công su?t liên t?c/ c?c ??i: 350W/1400W
- Loa t?n th?p: (2) EVS2008, 8 in (203mm) Driver
- Loa t?n cao: (4) DH2005, 1.25 in (32mm) Diaphragm Compression Driver
- Gi?c n?i: (2) 4 Contact 10 AWG Phoenix/ EuroBlock Style Screw Terminals
Thông s? k? thu?t
Thông s? k? thu?t
-
Frequency Range (-10 dB) 45 – 20000kHz Weight Net 81.79lbs (37.1kg) Depth 14.1″ (358.2mm) -
Width 23.5″ (596.9mm) Height 20.25″ (514.4mm) Suspension EVA Grid (Sold Separately) Grille 16 GA Galvanneal, Powder-coated (PI Version – Stainless Steel with Hydrophobic Cloth Enclosure Material Birch plywood Minimum Impedance 12? Nominal Impedance (Passive) 16? Crossover Frequency 1740Hz HF Transducer (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver LF Transducer (2) EVS2008, 8 In (203mm) Driver System Power Handling (Continuous/Program/Peak) 350, 700, 1400Watts Coverage (Nominal -6 dB) V 6° Coverage (Nominal -6 dB) H 90° Max. SPL/1m (calc) 135dB Sensitivity 1 W/1 m 104dB Recommended High-Pass Frequency 50Hz Frequency Response (-3 dB) 60 – 19000Hz Input Connections Phoenix/Euroblock style screw terminals Speaker Type Full-Range, Line-array Passive Power Handling 1400W peak
Tham kh?o chi ti?t tài li?u k? thu?t thi?t b? t?i ?ây.
