QND-8080R 5M H.265 NW IR Dome Camera

AIC Trading > PRODUCT > Surveillance Camera System

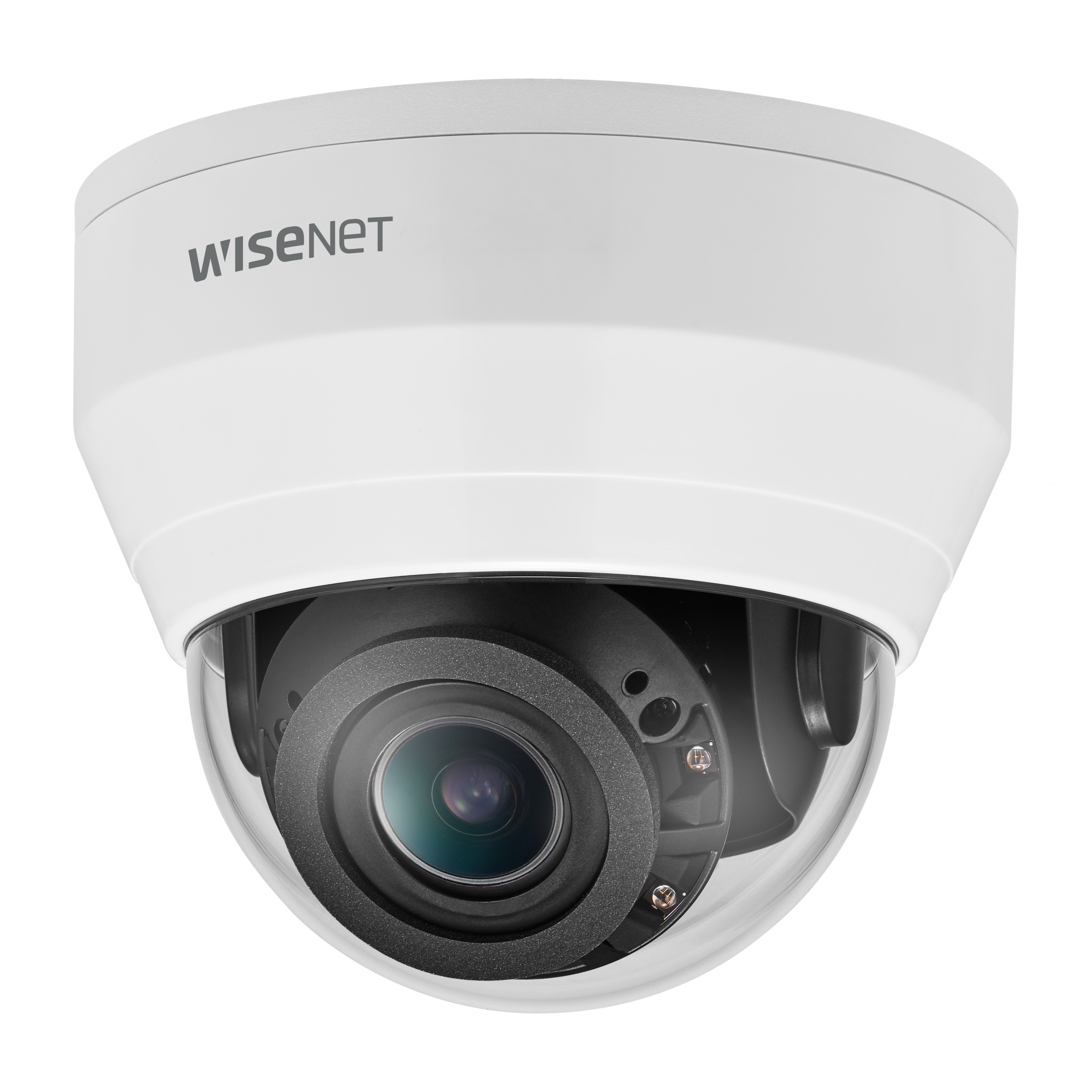

5M H.265 NW IR Dome Camera

QND-8080R

? Max. 5Megapixel (2592 x 1944) resolution
? 3.2~10mm(3.1x) motorized varifocal lens
? 0.15Lux (Color), 0Lux (B/W, IR LED on)
? Max. 30fps@5MP (H.265 / H.264)
? H.265, H.264, MJPEG codec support, Multiple streaming
? Day & Night, WDR (120dB)
? Tampering, Motion detection, Defocus detection
? Micro SD / SDHC / SDXC memory slot (Max. 128GB)
? Hallway view, WiseStream II support
? IR Viewable length 20m, PoE
?? phân gi?i cao
Cung c?p m?t h? th?ng giám sát nâng cao b?ng cách t?o ra ch?t l??ng hình ?nh v??t tr?i
Theo dõi t? ??ng k? thu?t s?

Theo dõi t? ??ng k? thu?t s? có th? ???c s? d?ng ?? phát hi?n các ??i t??ng chuy?n ??ng, bao g?m c? con ng??i

C?i thi?n b?ng thông v?i công ngh? WiseStream m?i

WiseStream có th? gi?m 50% b?ng thông b?ng cách s? d?ng công ngh? ??ng và khi k?t h?p v?i mã hóa video hi?u qu? cao

True WDR (120dB)
Ch?c n?ng WDR cung c?p ch?t l??ng hình ?nh nâng cao, b?ng cách gi?m nhòe chuy?n ??ng và x? lý hình ?nh rõ nét h?n.

Thông s? k? thu?t

Video
Imaging Device 1/2.8″ 5MP CMOS
Resolution 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600,
800×448, 720×576, 720×480, 640×480, 640×360, 320×240
4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600,
800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.15Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
Angular Field of View H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0?~350? / 0?~67? / 0?~355?
Operational
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
IR Viewable Length 20m(65.62ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +50°C(+14°F ~ +122°F) / Less than 90% RH
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 8.90W, typical 6.60W
Mechanical
Color / Material White / Plastic, Aluminum
DORI
Detect (25PPM/ 8PPF) Wide: 43.3m(141.94ft) / Tele: 185.7m(609.09ft)
Observe (63PPM/ 19PPF) Wide: 17.3m(56.78ft) / Tele: 74.3m(243.64ft)
Recognize (125PPM/ 38PPF) Wide: 8.7m(28.39ft) / Tele: 37.1m(121.82ft)
Identify (250PPM/ 76PPF) Wide: 4.3m(14.19ft) / Tele: 18.6m(60.91ft)
